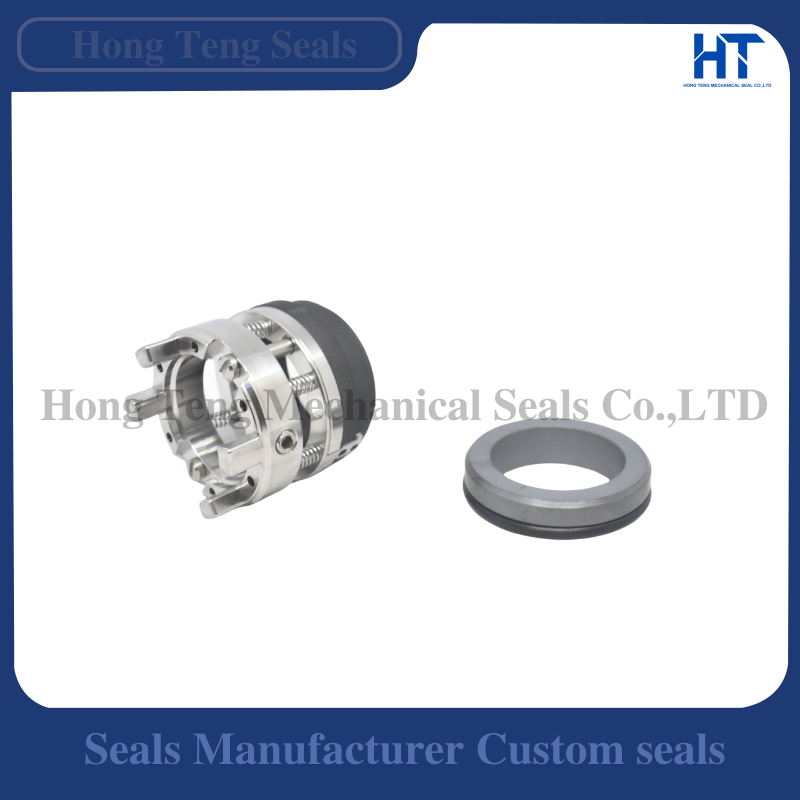

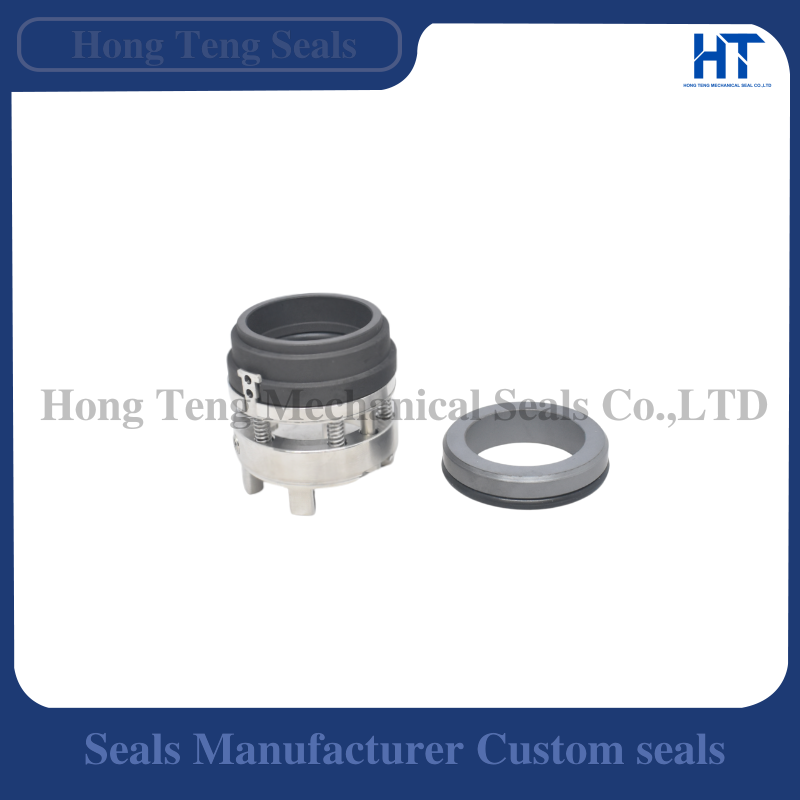

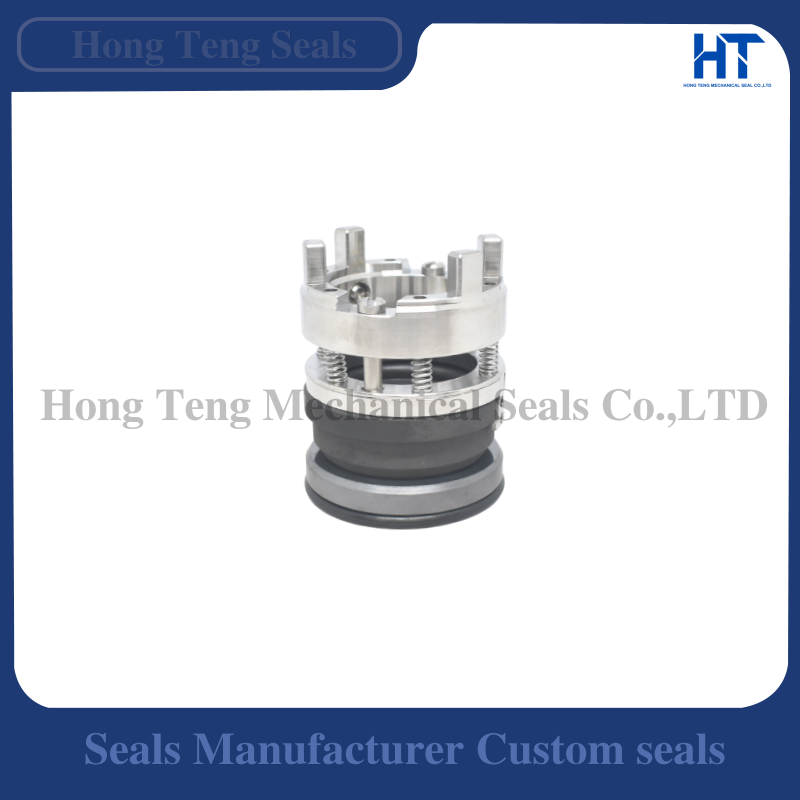

Replace KSB Pump 4EYS Mechanical Seal for ETNY Pumps
| Product Name | 4EYS Mechanical Seal for Selected KSB ETNY Pumps |
| Model / Reference | 4EYS / 4EYS-28 / 4EYS-33 / 4EYS-48 |
| Listed Shaft Size | 25 mm |
| Compatible Application | Selected KSB ETNY pump applications where the seal dimensions and installation arrangement match |
| Pressure | Up to 1.5 MPa for the listed configuration |
| Speed | Up to 15 m/s for the listed configuration |
| Temperature | -25°C to +220°C depending on the selected elastomer and material configuration |
| Seal Face / Seat | CA / SiC |
| Secondary Seal | FKM / Viton |
| Metal Options | SS304 / SS316 |
| Customization | OEM customization based on sample, drawing, dimensions and operating requirements |
| Before Ordering | Confirm pump model, shaft size, old seal dimensions, stationary seat, working length and operating medium |
The 4EYS mechanical seal is supplied as an aftermarket replacement for selected KSB ETNY pump applications. Compatibility should be confirmed from the complete pump model, existing seal dimensions and installation arrangement rather than from the 4EYS reference or nominal size alone.
For other drawing-, sample- and dimension-based replacement projects, browse our custom OEM mechanical seals.
Product Details
- Seal Reference: 4EYS

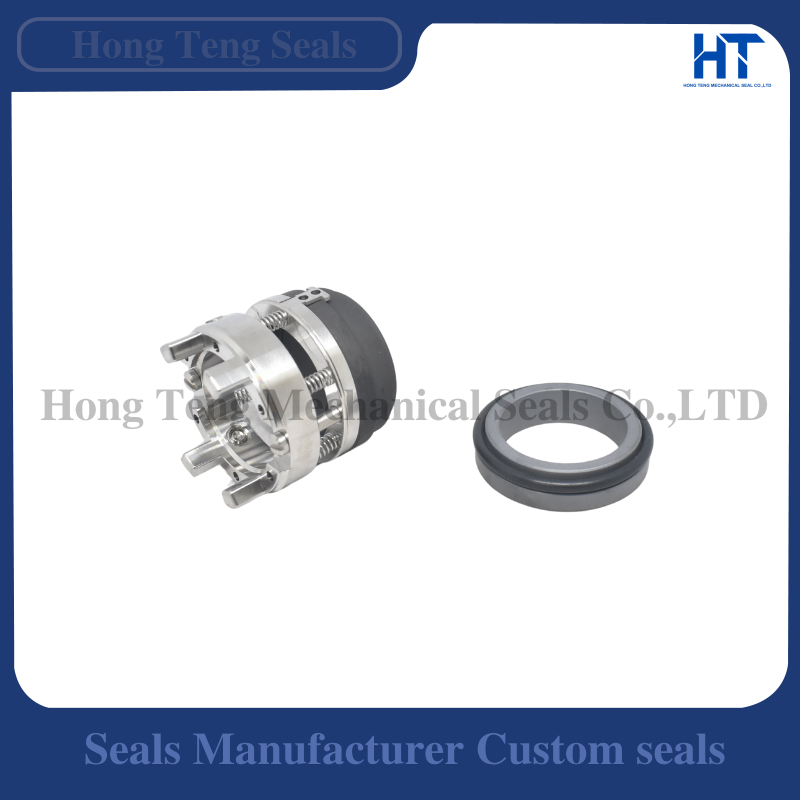

- Reference Variants: 4EYS-28 / 4EYS-33 / 4EYS-48
- Listed Shaft Size: 25 mm
- Application: Selected KSB ETNY pump applications
- Seal Face: CA / SiC
- Stationary Seat: CA / SiC
- Secondary Seal: FKM / Viton
- Metal Options: SS304 / SS316
- Listed Pressure: ≤ 1.5 MPa
- Listed Speed: ≤ 15 m/s
- Listed Temperature: -25°C to +220°C depending on elastomer and material selection
- Manufacturing Service: OEM customization available according to samples, drawings and dimensions
- Quality System: ISO 9001:2015
Important: The listed operating limits describe the current product configuration and should not be treated as universal limits for every 4EYS replacement. Final dimensions, materials and operating suitability should be confirmed for the actual pump and service conditions.
Product Description
The 4EYS Mechanical Seal is an aftermarket replacement sealing solution supplied for selected KSB ETNY pump applications. The current product configuration includes a listed 25 mm shaft size, CA / SiC sealing faces, FKM secondary sealing elements and SS304 or SS316 metal options.
The available 4EYS references include 4EYS-28, 4EYS-33 and 4EYS-48 configurations. Because mechanical seals with similar references or appearances may use different stationary seats, working lengths or installation dimensions, the complete pump model and removed seal should be checked before replacement.
For the listed configuration, operating data include pressure up to 1.5 MPa and speed up to 15 m/s. The stated temperature range of -25°C to +220°C depends on the selected elastomer and material configuration, so the pumped medium and actual operating temperature should be provided before final material selection.
Hong Teng also supports OEM and custom mechanical seal production from physical samples, technical drawings and measured dimensions. When an original part number cannot be confirmed, provide photographs of the complete seal, shaft diameter, stationary-seat dimensions and installed working length for comparison.
Compatibility Notice: KSB, ETNY and related model references are used only to identify compatible replacement applications. This product is independently manufactured by Hong Teng and is not represented as an original or authorized KSB product.
Application
The 4EYS mechanical seal is intended for selected KSB ETNY pump maintenance and replacement applications where the pump model, shaft size, seal geometry and operating conditions match the required configuration.
Typical Replacement Applications
- Selected KSB ETNY pump applications
- Industrial centrifugal pump maintenance
- Pump overhaul and mechanical seal replacement
- OEM replacement based on existing seal samples or technical drawings
- Custom replacement projects based on confirmed installation dimensions
Information to Confirm Before Ordering
- Complete pump manufacturer and model
- Original mechanical seal reference if available
- Shaft or sleeve diameter
- Rotating seal dimensions
- Stationary-seat inside and outside dimensions
- Installed working length
- Clear photographs of the old seal and stationary seat
- Pumped medium
- Operating temperature and pressure
- Required seal-face and elastomer materials
- Required quantity
Selection Note: Do not select a 4EYS replacement only from the model name or shaft diameter. The stationary seat, working length, material combination and installation arrangement should also match the actual pump.
