Mechanical seal elastomers can determine whether a pump operates reliably or develops leakage after a short service period. NBR, EPDM, FKM, and FFKM may look similar as O-rings, gaskets, or molded rubber parts, but their resistance to oils, water, steam, solvents, acids, cleaning chemicals, and heat can differ greatly.
The correct choice depends on the complete duty: process fluid, concentration, temperature, pressure, startup and shutdown conditions, cleaning cycle, seal design, elastomer location, and previous failure pattern. A higher-cost compound is useful only when the application requires its additional capability.
A Practical Mechanical Seal Elastomer Selection Process
- Identify every fluid that can contact the elastomer, including process liquid, contaminants, flush fluid, assembly lubricant, cleaning chemicals, and shutdown residues.
- Record minimum, normal, and maximum temperature, including steam, hot flushes, and cleaning cycles.
- Confirm pressure, pressure spikes, seal type, O-ring location, groove condition, and whether the secondary seal moves dynamically.
- Shortlist NBR, EPDM, FKM, or FFKM according to the real fluid and temperature range.
- Verify the exact compound using manufacturer compatibility data and required approvals.
- Inspect the previous elastomer failure before changing material.
Why Mechanical Seal Elastomers Matter
Mechanical seal faces control leakage at the rotating interface, while secondary seals close the other leakage paths. Depending on the design, elastomers may seal between the rotating unit and shaft, stationary seat and housing, gland and seal chamber, or several cartridge components.
If one O-ring swells, hardens, cracks, or loses compression, good seal faces cannot prevent leakage around it. This is why a mechanical seal material selection guide should treat elastomers separately from carbon, ceramic, silicon carbide, tungsten carbide, and metal parts.

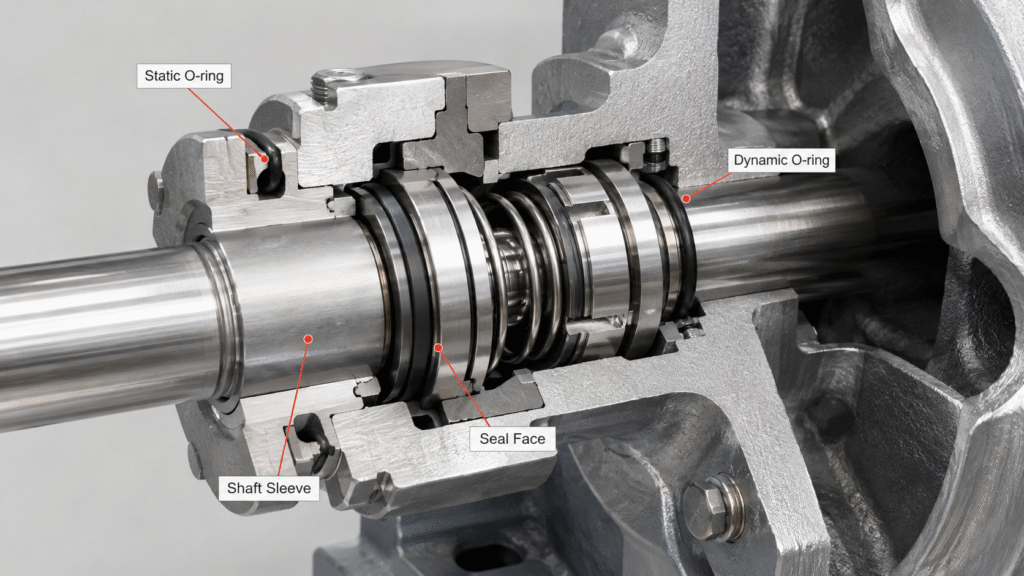

Static and Dynamic Secondary Seals Have Different Demands
A static O-ring remains compressed between surfaces that do not slide relative to each other during normal operation. A pusher mechanical seal may contain a dynamic O-ring that moves axially along a shaft or sleeve as the face follows wear and shaft movement. Dynamic locations add friction, deposit sensitivity, surface-finish requirements, and extrusion risk.
Rubber bellows create another case because the elastomer can act as both a sealing element and a flexible moving component. The rubber vs metal bellows decision should therefore consider fluid compatibility, temperature, flexibility, deposits, shaft grip, and installation method.
NBR for General and Oil-Related Service
NBR, or nitrile rubber, combines useful mechanical properties with moderate cost. It often performs well with mineral oils, lubricants, greases, and many general industrial fluids, making it a practical starting point for oil-related duties and mild service.
NBR should not be treated as a universal water-pump rubber. Performance varies with formulation, acrylonitrile content, hardness, temperature, and fluid exposure. Ozone, weathering, strong oxidizers, aggressive chemicals, and excessive heat can limit service.
The Parker O-Ring Material Selection Guide is useful for comparing material families, but the exact compound datasheet still matters.
EPDM for Water, Steam, and Aqueous Cleaning Service
EPDM is often selected for water-based service because it offers useful resistance to water, weathering, ozone, and many polar fluids. Suitable compounds can also perform well in hot-water, steam, and selected cleaning environments.
The main warning is petroleum exposure. EPDM is generally a poor choice for mineral oils, fuels, and many hydrocarbon lubricants. This matters when a water-based process can also expose the elastomer to oil contamination, assembly lubricant, or another hydrocarbon during maintenance.
For sanitary or regularly cleaned systems, record every CIP or SIP chemical, concentration, temperature, and contact time. Also confirm any required food-contact, drinking-water, pharmaceutical, or hygiene approval.
FKM for Oils, Heat, and Broader Chemical Duty
FKM fluoroelastomers are widely used when NBR does not provide enough heat, oil, fuel, or chemical resistance. They are common in process pumps, chemical equipment, and oil-handling systems.
“FKM” describes a family rather than one universal compound. Polymer structure, cure system, fillers, and formulation can change chemical and low-temperature behavior. Standard FKM may also be unsuitable for certain steam, hot-water, amine, ketone, organic-acid, or other special chemical conditions.
For corrosive media, use the actual chemical name, concentration, and temperature. The guide to mechanical seals for acids and corrosive fluids explains why face materials, metals, elastomers, and operating conditions must be checked together.
When FFKM Becomes Worth the Cost
FFKM, or perfluoroelastomer, offers very broad chemical and high-temperature capability in selected compounds. It may be considered for aggressive chemical processing, high-temperature duty, pharmaceutical systems, semiconductor equipment, or other critical services where standard elastomers fail.
The higher capability comes with a substantial cost increase. FFKM should not be specified only because it is the premium option. In mild water, oil, or moderate chemical service, a correctly selected NBR, EPDM, or FKM compound may be entirely suitable.
DuPont Kalrez Chemical Resistance resources also show why grade-level verification remains important within FFKM.
NBR vs EPDM vs FKM vs FFKM at a Glance
| Elastomer | Typical Strengths | Important Concerns | Useful Starting Point |
|---|---|---|---|
| NBR | Mineral oils, lubricants, general mechanical value, moderate cost | Ozone, high heat, strong oxidizers, some chemicals | General industrial and oil-related service |
| EPDM | Water, hot water, many polar fluids, weathering | Petroleum oils, fuels, hydrocarbon contamination | Water, HVAC, cleaning, and aqueous service |
| FKM | Oils, fuels, higher heat, broad chemical capability | Some steam, amines, ketones, and special chemicals depending on grade | Hotter oil, process, and selected chemical service |
| FFKM | Very broad chemical and high-temperature capability in selected grades | High cost; compound-level verification still required | Aggressive chemicals and critical high-value service |
This table is a screening tool, not a final compatibility chart. Temperature limits and chemical resistance vary by compound, pressure, exposure time, seal design, and manufacturer data.
Match the Elastomer to the Complete Pump Duty
Start with the fluid, then add concentration, contaminants, cleaning chemicals, and temporary process mixtures. Next, check normal and maximum temperature, including hot flushes, steam, shutdown soak, and process spikes.
Pressure matters because a softened or swollen O-ring can extrude into clearances. Check hardness, groove dimensions, extrusion gaps, and whether backup rings are required. In a dynamic secondary seal, shaft finish, deposits, and movement also influence performance.
For replacement work, the pump mechanical seal range can help identify possible seal constructions after the pump model and dimensions are confirmed.

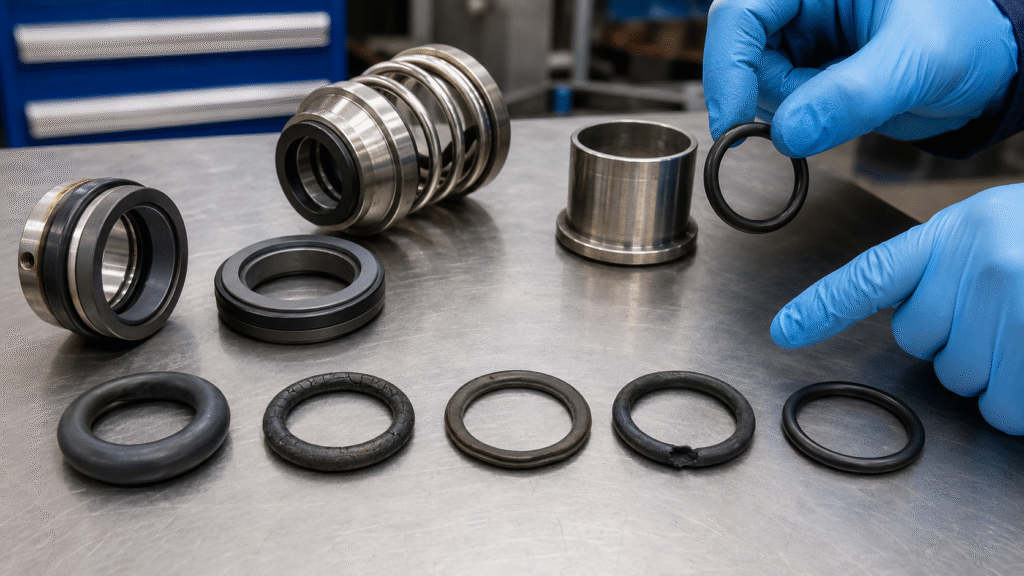

Read Elastomer Failure Patterns Before Changing Material
- Swelling or softening: may indicate fluid absorption or chemical incompatibility.
- Hardening or cracking: may indicate heat, oxidation, aging, or incompatible chemistry.
- Permanent flattening: may indicate compression set, excessive temperature, or long service under compression.
- Cuts or spiral damage: often point to assembly, movement, sharp edges, or incorrect installation rather than material incompatibility.
- Nibbling or extrusion: may indicate pressure, excessive clearance, softened material, or insufficient support.
If a mechanical seal leaking after installation shows a damaged O-ring, first determine whether the rubber was chemically incompatible or simply cut, twisted, pinched, or incorrectly lubricated.
Common Elastomer Selection Mistakes
- Selecting by color instead of a verified material specification
- Choosing from normal temperature while ignoring cleaning or steam exposure
- Ignoring assembly lubricant, flush fluid, or contamination
- Assuming FKM is always better than NBR
- Using EPDM where hydrocarbon exposure is possible
- Upgrading to FFKM before confirming the actual failure mechanism
- Ignoring groove geometry, extrusion gaps, or dynamic O-ring movement
Mechanical Seal Elastomer FAQ
Is FKM Always Better Than NBR?
No. FKM usually provides broader heat, oil, and chemical resistance, but NBR may be more economical and completely suitable in mild oil or general industrial service.
Should I Use EPDM or FKM for Hot Water?
It depends on the exact water chemistry, temperature, steam exposure, cleaning chemicals, and compound. EPDM is often a strong starting point, but manufacturer data should confirm the proposed grade.
When Should I Upgrade to FFKM?
Consider FFKM when aggressive chemistry, high temperature, contamination requirements, or repeated elastomer failures justify the additional cost. First confirm that the failure is actually related to elastomer compatibility.
Can I Identify NBR, EPDM, or FKM by Color?
No. Different compounds can use similar pigments, and service exposure can change appearance. Use material markings, purchasing records, supplier data, or controlled material testing when identification matters.
Mechanical seal elastomers should be selected from the complete duty, not from price or a familiar material name. Verify the exact compound, fluid concentration, temperature, pressure, seal design, cleaning cycle, and previous failure pattern before approving the replacement.
